PRODUCT
We innovate cardiovascular OCT devices to
improve the lives of patients worldwide.
Faster, More Precise than Ever.
-
Raywatt is a world-leading company in the field of intravascular Optical Coherence
Tomography (OCT) technology. We provide precise 2D/3D imaging through world-leading
imaging technology of 400 frames per second, reducing contrast agent usage during OCT
imaging to minimize patient side effects and complications. Additionally, our AI-powered
FFR simulator aids accurate decision-making during medical procedures.
In 2019, a group of experts in medicine, computer engineering, mechanical engineering, and optics came together to innovate in the field of intravascular OCT technology, thus founding Raywatt. - After years of research and collaboration, we have developed the industry's top-performing intravascular OCT equipment, providing high-resolution cross-sectional images of blood vessels for enhanced diagnosis and treatment. At this moment, cardiovascular diseases remain the number one cause of death worldwide. We are committed to pushing the boundaries of OCT technology to ensure that all patients with cardiovascular diseases receive the best possible treatment. Raywatt promises an unwavering passion and expertise in advancing cardiovascular medicine. We always remember the vital role we play in the fight against cardiovascular diseases and will continually strive to help patients worldwide find a healthier future.

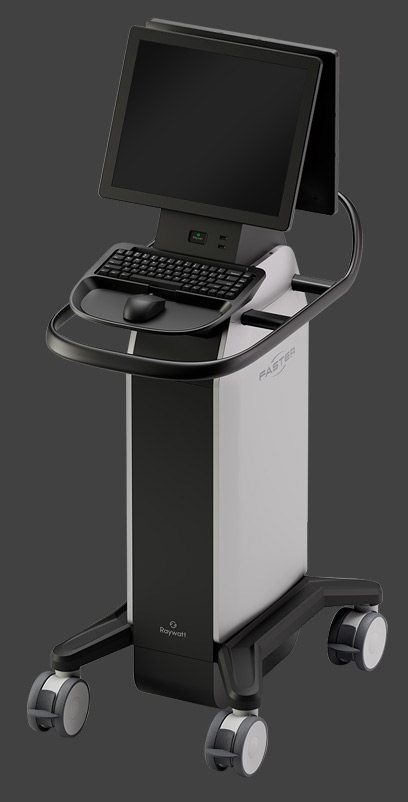

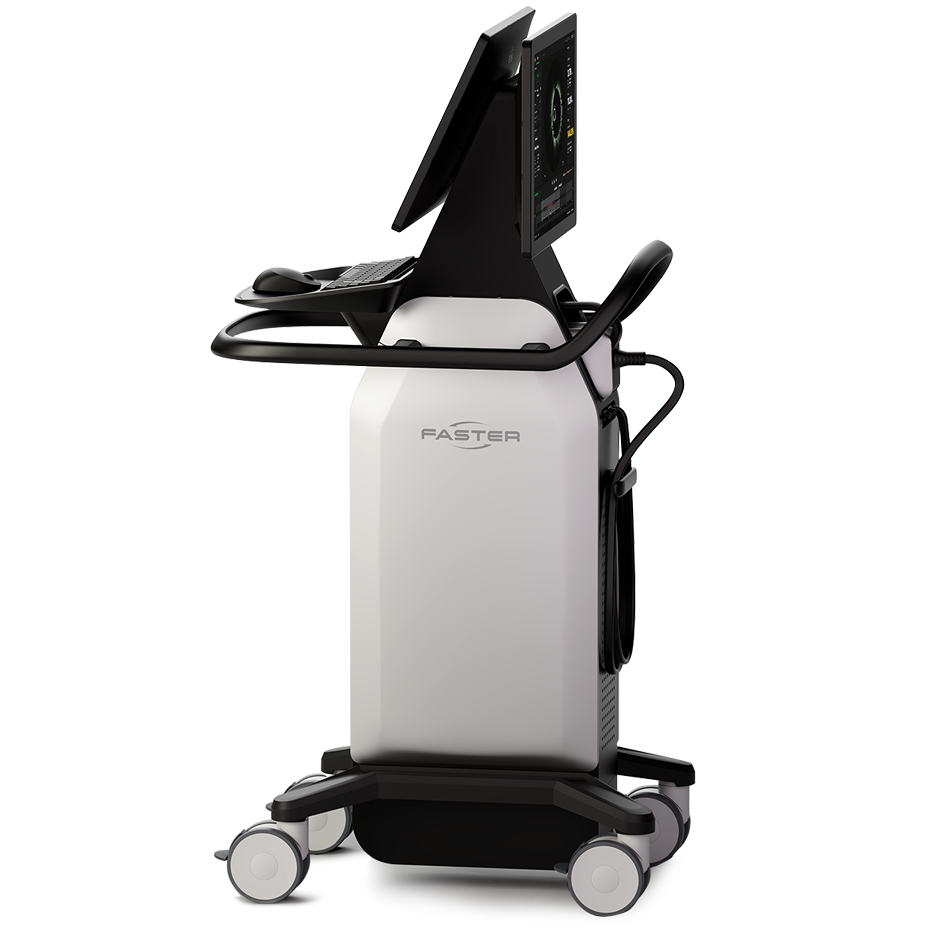

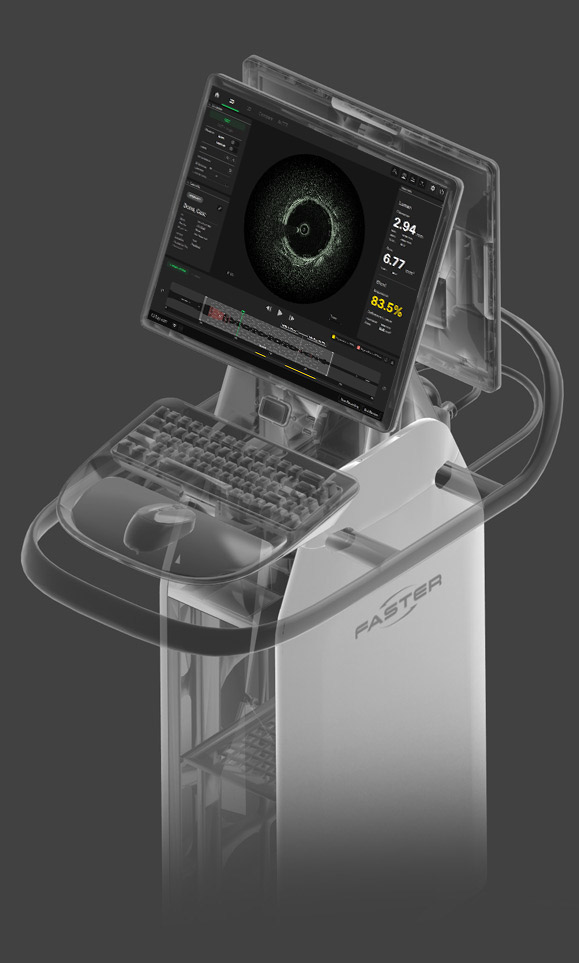

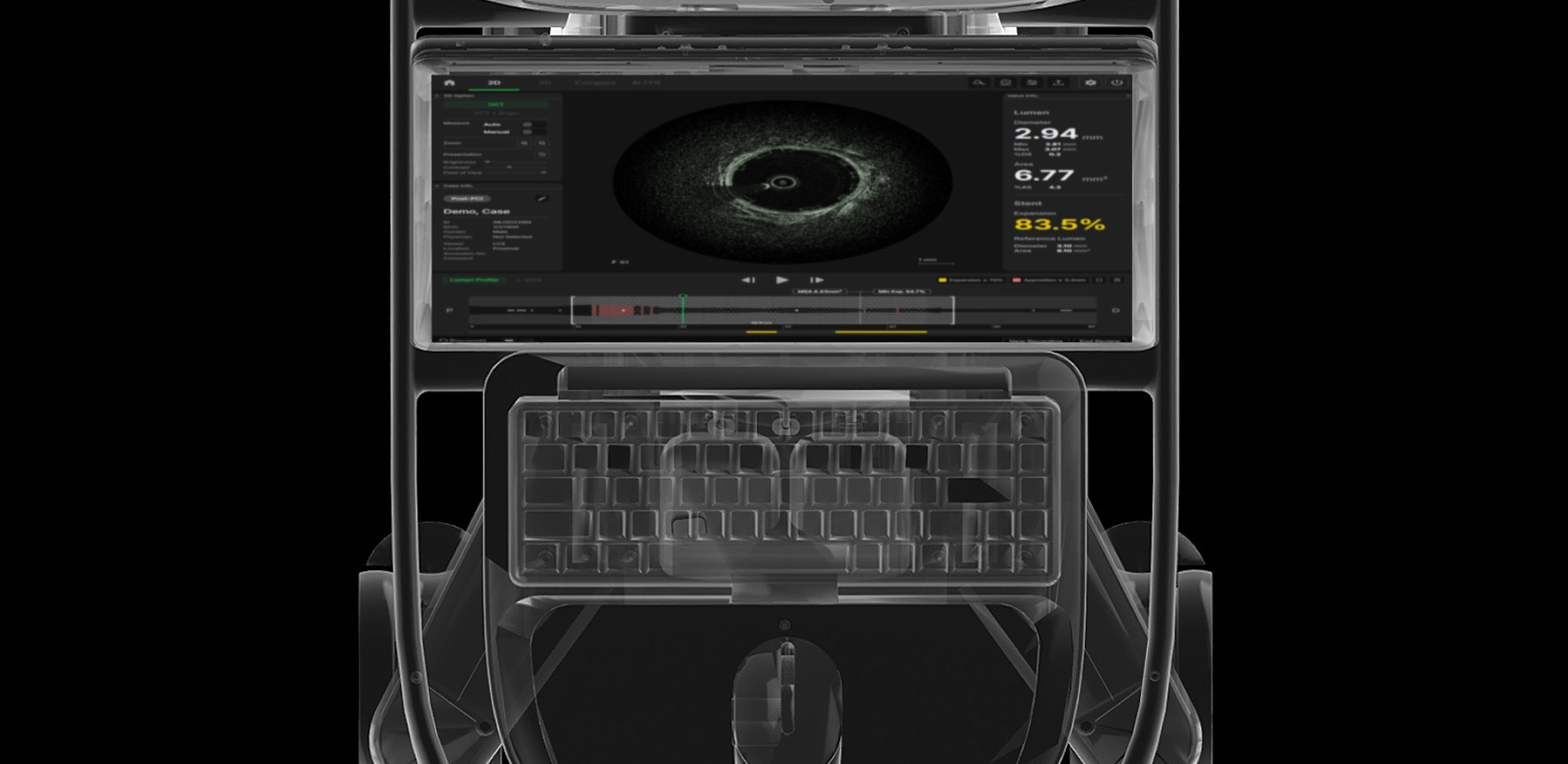

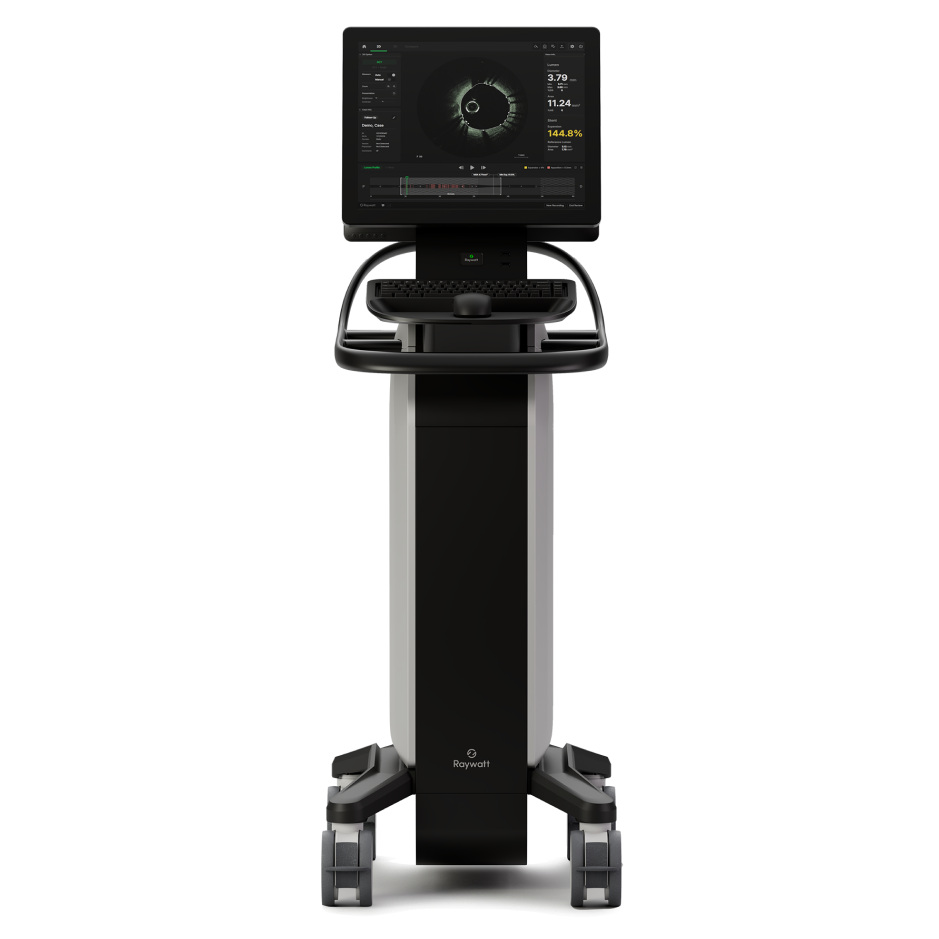

OCT Imaging System
Introducing Raywatt’s innovative FASTER OCT system for swift and accurate cardiovascular diagnosis.
FASTER OCT offers world-leading imaging technology at 400 frames per second, using saline to
greatly reduce patient side effects and complications. It not only provides high-resolution
images but also performs detailed analysis, swiftly delivering crucial medical
information to users. With its definitive diagnosis, FASTER OCT aids in fast
patient treatment. From groundbreaking speed to transformative
treatment, we lead the way in revolutionizing cardiovascular
care for all those affected by heart disease.
Highest Frame Rate Imaging
We provide the world’s fastest imaging with a catheterrotating at 400 rotations per second.
One Second OCT Imaging Time
We commit to capturing brief OCT imaging within 1 second or less,enabled by a maximum 120 mm/s pullback speed.
Superior 3D Resolution Image
We provide high-resolution 3D cardiovascular imaging,delivering the highest level of detail and clarity.
Easy Mobility for Emergency
FASTER OCT system features a minimalistic design, providingexcellent portability for emergency situations.
FASTER Specification
| Frame rate (catheter rotation) | 400 frames/s (24,000 rpm) |
| Laser class | Class 1 |
| A-scan rate | 200 KHz |
| Wavelength | 1300 nm ± 50 nm |

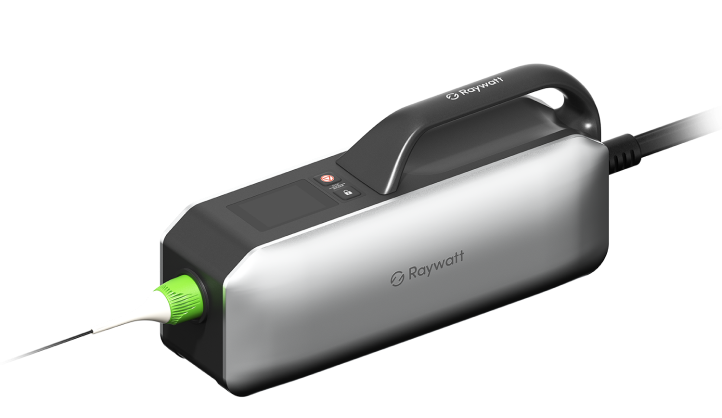

Rotary Junction
Introducing FASTER’s Rotary Junction, which enables stable vascular scanning with
precision even during high-speed rotation. Utilizing a hollow motor mechanism
that directly transfers rotational torque to the catheter, the OCT system
and catheter’s optical fibers are directly connected, providing
a stable and low-vibration environment for the catheter to
rotate at 400 rotations per second. This innovation
facilitates safer cardiovascular procedures.

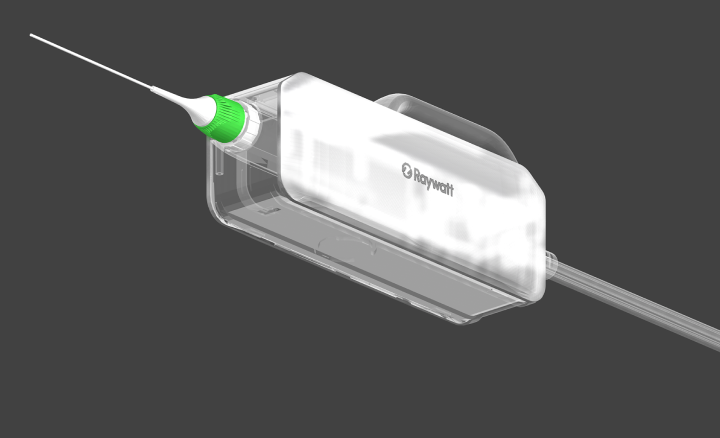

Ultrafast Catheter Rotation
The fiber-optic rotary connection enables low-vibration catheter rotation in OCT systems.The fiber-optic technology passes through the hollow core motor and connects
to the catheter, allowing direct transmission of rotational torque.
Seamless Catheter Connection
The rotary junction allows for easy attachment and detachmentof the catheter, providing convenience in usage.

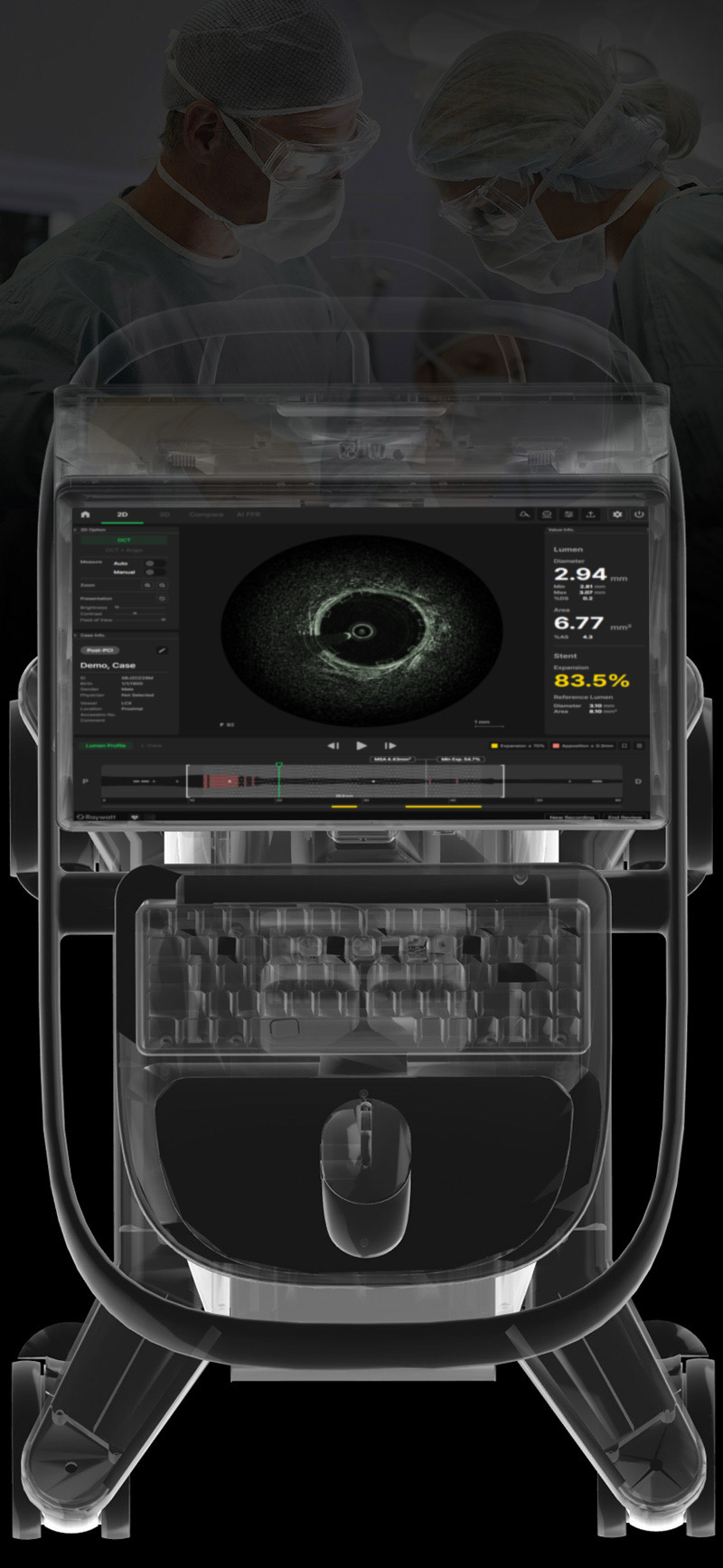

Clear Insights with LCD Display
The LCD display clearly shows the system’s operation,making connection processes easy to observe.
Safe Saline Flushing
The use of saline in rapid imaging allows for a safer assessmentprocess by reducing patient side effects and complications.
Rotary Junction Specification
| Catheter rotation | 24,000 rpm |
| Standard pullback (length, speed, imaging time) | 60 mm, 60 mm/s, 1 s / 100 mm, 100 mm/s, 1 s |
| High resolution pullback | 60 mm, 20 mm/s, 3 s / 100 mm, 40 mm/s, 2.5 s |
| Faster pullback for specialized care | 60 mm, 120 mm/s, 0.5 s |
| LCD viewing area | 48.9 mm W x 36.7 mm H |
